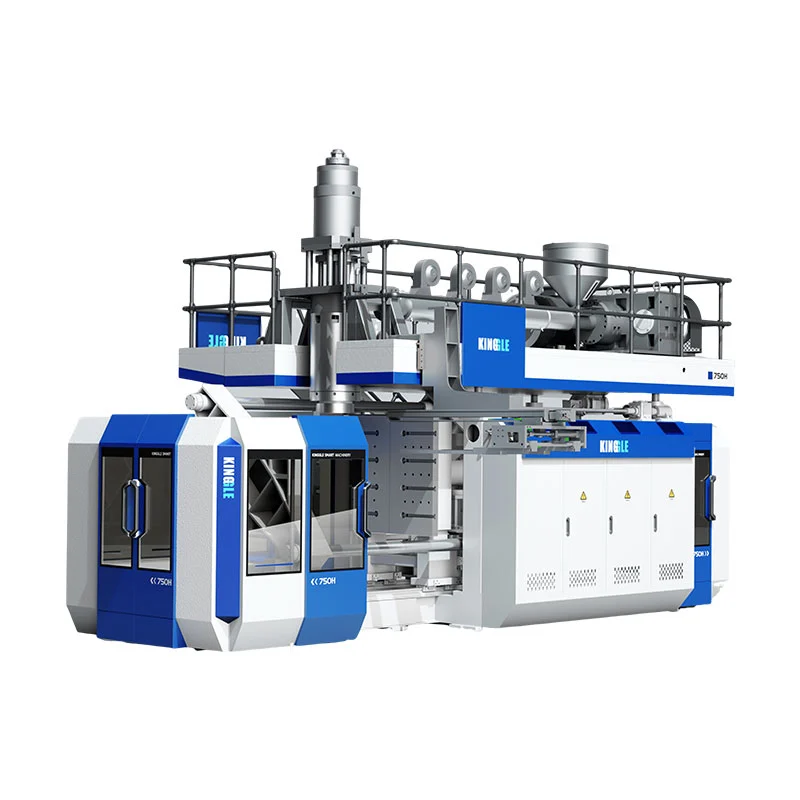

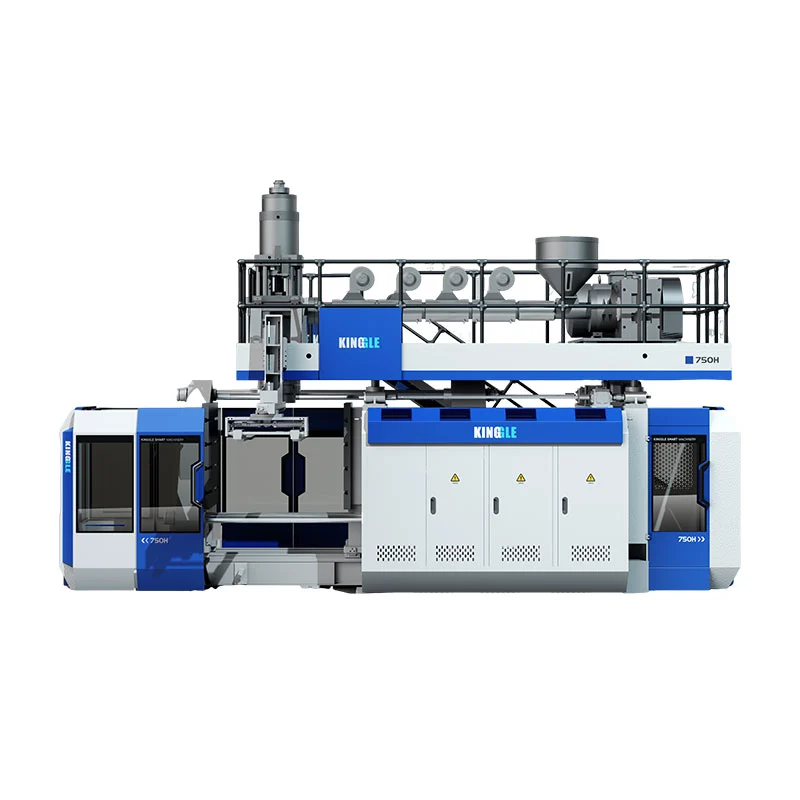

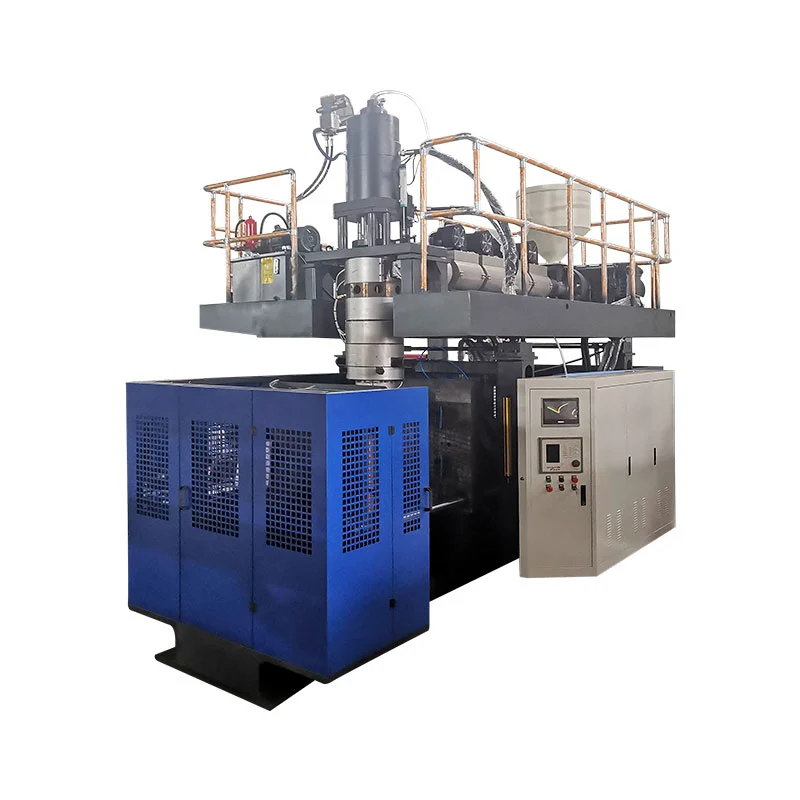

60L to'planadigan mog'or mashinasi

Model:KGB90A

Ushbu qat'iy belgilangan va yopiq zarba shaklida eksklyuziv konni sinxron qisish va yog 'silindrini to'g'ridan-to'g'ri bosimni blokirovka qilish shaklini o'z ichiga olgan holda yuqori ko'rsatkich va samaradorlikni ta'minlaydi. Tez javob va energiya tejash uchun gidroik servo tizimi bilan jihozlangan, bu 60L kenglikdagi moda ekish moslamasini katta hajmdagi hajmdagi bo'laklarga chiqarish uchun katta hajmdagi mahsulotni ishlab chiqarishda.

Ovoz balandligi: 60LOg'irligi: 14t

So'rov yuborish

Mahsulot tavsifi Specification Application

KGB90A standartlari, etakchi akkolkulyatorning boshini urib qo'yish mashinasi, harorat 100 qalinlikdagi qalin qalinlikdagi qalinlikdagi qalinlik va pastki puflash tizimini o'z ichiga oladi, unumdorlik va mahsulot sifatini oshiradi. Bu 60L to'plangan shakllantirish mashinasi turli xil dasturlar uchun, shu jumladan kimyoviy barqa pufagini soling, plastik suv idishlari, avtoulovlar, avtoulovlar, avtoulovlar, avtoulovlar va yo'l to'siqlarini ishlab chiqarish uchun juda mos keladi.

Xususiyatlar va afzalliklar

Ushbu modelda ikki karra bog'lash va yopish mexanikasi yopiq mexanizmi yordamida ochilish va yopish turidir.
● Saqlash tsilindrining o'lishi boshi
● Maksimal hajmi 60L
● Kimyoviy qadoq bochkalari, katta o'yinchoqlar, abs avtoulovi originlari va boshqalar.
● Noyob texnologiyasida, mog'or bosish tizimi, katta qisqich kombinat, tez egilish kuchlari, qisqa mog'or siqish tezligi, qisqa mahsulot aylanishi

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

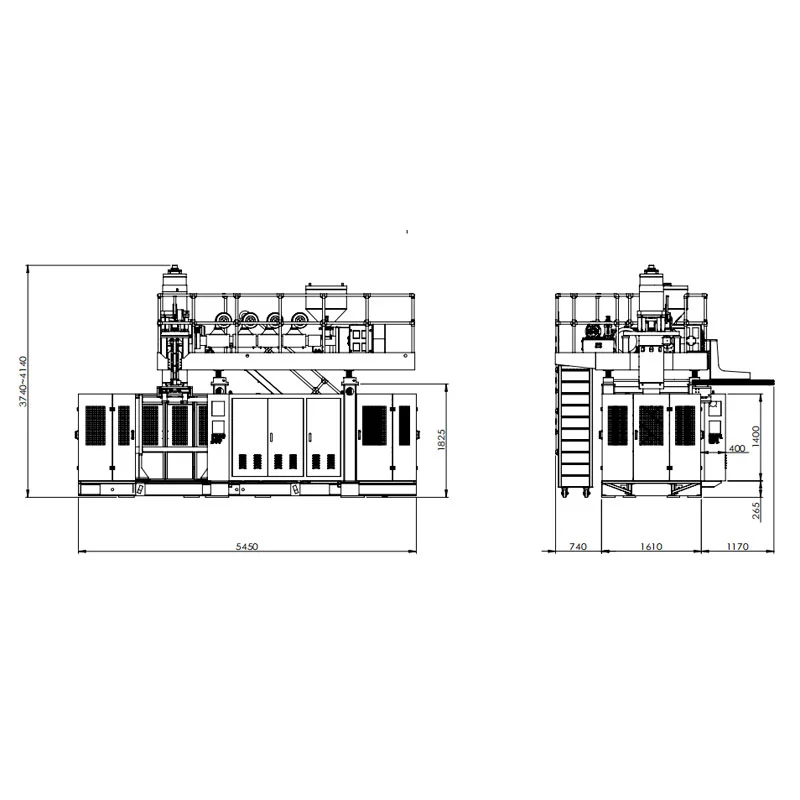

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
