60L akkumulyatorning zarbasi

Model:KGB90AP

KGB90AP uchun energiya tejaydigan 60 dona akkumulyatorning o'rnatilgan mog'orlangan mashinasi yoki ikki karra rangli zarbalarni shakllantirish mashinasi texnologiyasini aks ettiradi. Bu ikki qavatli va ikki rangli 60L dublivitar mashinalar uchun maxsus ishlab chiqilgan, masalan, asboblar qutisi zarbali mashinalari / Sanoatni saqlash idishlari / 60L konteynerlar, bu uzoq muddatli ishonchlilik va xarajatlarni tejashni ta'minlaydi.

Ovoz balandligi: 60LOg'irligi: 15t

So'rov yuborish

Mahsulot tavsifi Specification Application

KGB90AP 60L akkumulyatorining parchalanishi ikki baravar ajratish tizimiga ega ikki qavatli yoki ikki marta rangli ishlab chiqarish talablariga mos kelishi mumkin Mahsulot jiringladi.
100 qalinlikdagi qalinlikdagi kontrolyator, robot qo'l va pastki pufakchalarini o'z ichiga oladi Tizim, unumdorlik va mahsulot sifatini oshirish. Ushbu ko'p qirrali mashina turli xil dasturlar uchun ideal, shu jumladan kimyoviy barqa kimyoviy zarba berish Mashinalar echimlari, plastik ekzatsion zarbani urish mashinasi jarayonlarini.

Xususiyatlar va afzalliklar

Ushbu model - bu ikki tomonlama shiel tayoqchasidan foydalanib, ochilish va yopilish turidir Sinxron mog'or mog'ori, yog 'silindrini to'g'ridan-to'g'ri bosim o'tkazing qisish
Saqlash silindrining o'lishi boshi seriyali
Maksimal hajmi 60L
Mos fotolload va boshqalar.
Noyob texnologiyadan foydalanib, mog'or bosish tizimi, katta siqilish kuch, tezkor mog'or siqish tezligi, qisqa mahsulot aylanishi

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

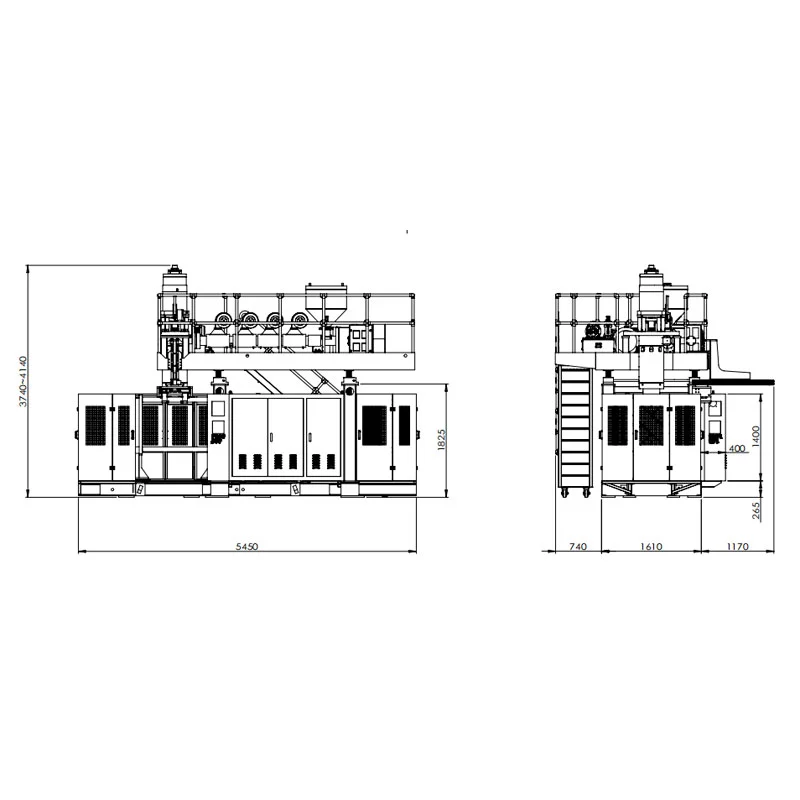

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
