250L kimyoviy barrelli zarbani shakllantirish mashinasi

Model:KGB200L/LP

Ushbu ixtisoslashgan 250l to'planganligi uchun umumiy band bochka maxsus zarbasi mashinasi yuqori sifatli 220L ikki halqali ko'k bochkalarni ishlab chiqarish uchun maxsus ishlab chiqilgan. Katta yopiq mexanizmni murakkab yopiq mexanizmdan foydalanishning murakkab varaqasi sinxron siqish tizimi barqaror va bardoshli mog'or qisqichbaqasimonlarni ta'minlaydi.

Hajmi: 250LOg'irligi: 39t

So'rov yuborish

Mahsulot tavsifi Specification Application

Patentlangan ikki qavatli, ikki tomonlama general akkumulyator boshi o'ladi, birlashtirildi Yuqori samarali ekstuder birligi bilan ajralmas natijalarni taqdim etadi. Bu bochkalarning kimyoviy zarbasi mashinasi moog 100 qalinligini o'z ichiga oladi Kontroller, robot qo'l va pastki puflash tizimi kuchaytirilgan samaradorlik tizimi. Ishlab chiqarilgan barabanlar qat'iy sifat standartlariga javob beradi, shu jumladan o'tish 3 metrlik tomchi sinovi va BMTni sertifikatlash.

Xususiyatlar va afzalliklar

Gorizontal bar markazini grektsiya saqlash tsilindrini saqlash bosh
● optimallashtirilgan dizayn va aniqlik orqali yuqori ishlab chiqarish quvvatlariga erishish Ishlab chiqarish, soatiga 17-20 dona ishlab chiqarishga qodir
● Brantellar ishlab chiqarilgan 3m tomchi sinovdan o'tishi mumkin va BMTni tugatishi mumkin sertifikatlash

200l barrel vazni: 12-15 kg

Material: hmwhhdpe

Qalinligi: 3.5-4 mm

Ushbu ixtisoslashgan kimyoviy barrelli zarbali zarbalar mashinasi yuqori sifatli 220L halqali ko'klyonli ko'k bochkalarni samarali ishlab chiqarish uchun mo'ljallangan. Ruxsat etilgan ochiq yopilish mexanizmini, murakkab qo'lli sinxron siqish tizimi, patentlangan ikki qavatli, ikki qavatli, ikki qavatli akkumulyator boshlangan, bu juda ajoyib ijro etadi.

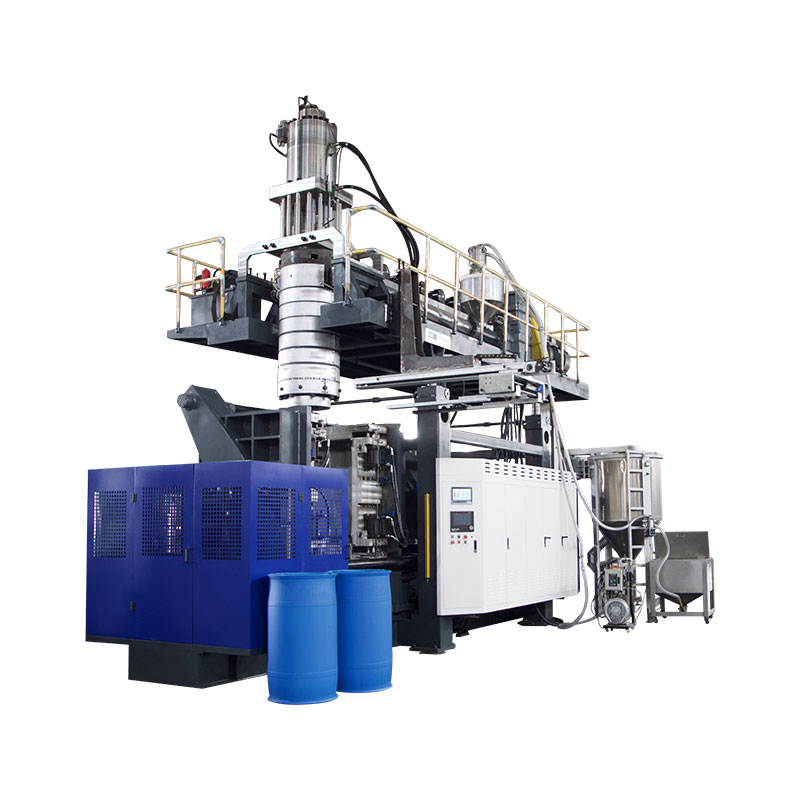

Double layer 220L double-ring chemical barrel blow molding machine

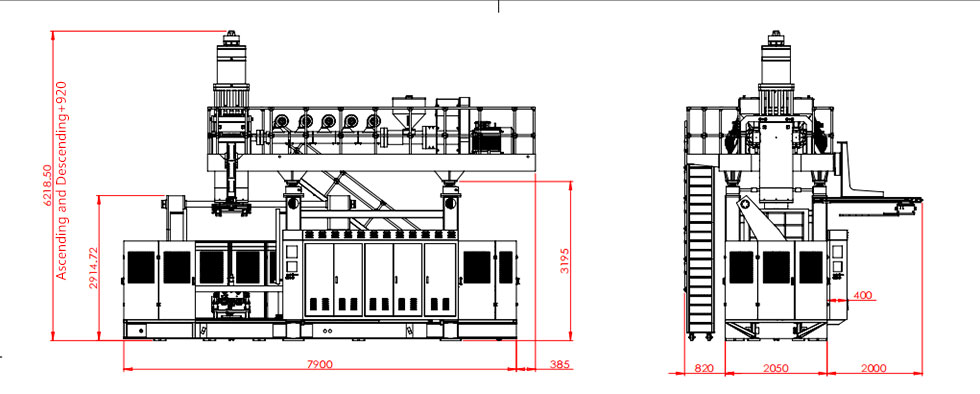

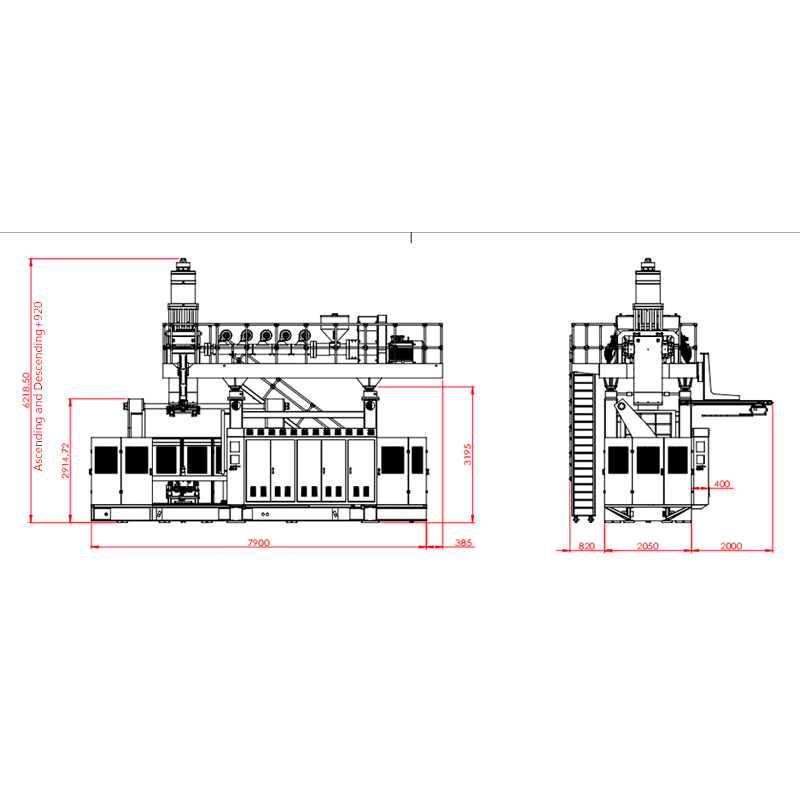

Chizma

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
