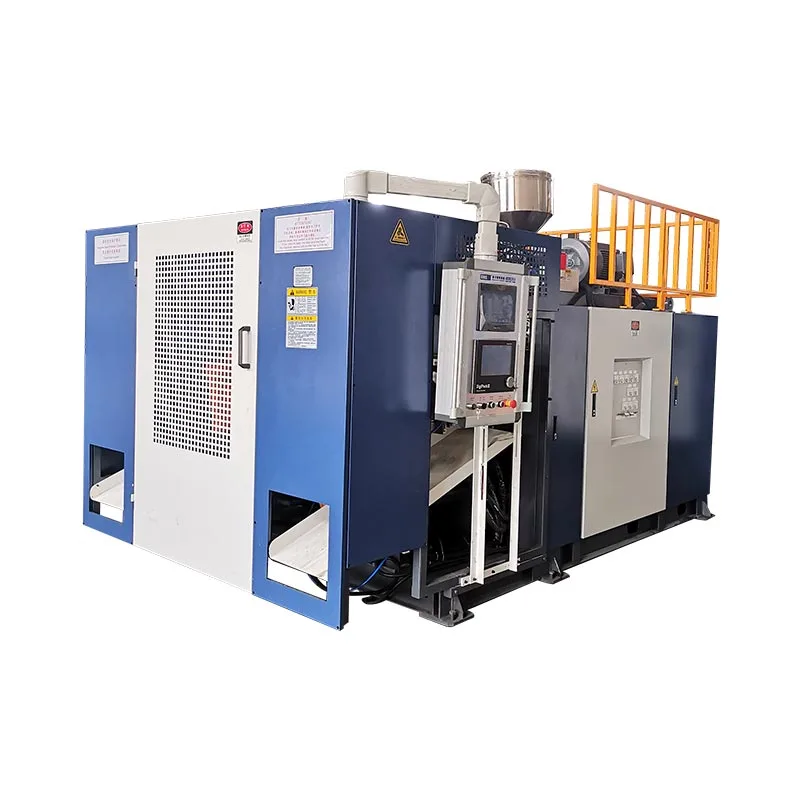

5L ikki qator stantsiya zarbasi

Model:KGB5D

Mahsulotingizni ko'paytiring Ushbu yuqori samarali mashina moslashuvchan konfiguratsiyalarni, shu jumladan 2, 3 yoki 4 ta ko'p o'lchagichni o'rnatadi, keng doiradagi idishlarni joylashtiradi.

Ovoz balandligi: 5lOg'irligi: 5.2t

So'rov yuborish

Mahsulot tavsifi Specification Application

Kichik hajmli idishlardan katta 5l konteynerlarga, bu 5 ta stantsiya zarbasini shakllantirish mashinasini ta'minlaydi samarali ishlab chiqarish va izchil sifat. Turli xil dasturlar uchun ideal, , shu jumladan kir yuvish vositasi paketini buzadigan dasta eritmalari, u Iste'moliy chiqindilarni ishlab chiqaradi va investitsiyalarga qaytishingizni maksimal darajada oshiradi.

Xususiyatlar va afzalliklar

● Ikki tinchistantsiya tarjima qilish mog'orini o'zgartirish, barqarorlik va barqarorlash uchun buferning tergila valfidan foydalanish.
● O'tirgan bosh markazni oziqlantirish shaklini qabul qiladi
Elektron boshqaruv tizimi Mitsubishi PLC nazorati va mustaqil qo'lda tugmachalarni qabul qilish operatorni tuzatish va sozlashni osonlashtiradi.
● Maksimal mahsulot hajmi 5l, bu 2-5l dan kam massa ishlab chiqarish uchun afzallangan zarbali uskunalardir.
● xususiyatlarga ko'ra, uni bir qatlamga, ikki qatlam, uchta qatlam, shaffof chiziqqa bo'lish mumkin.
● Gidrotexik tizim differentsial dizayn, yuqori samaradorlik va tezlikni qabul qiladi

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
