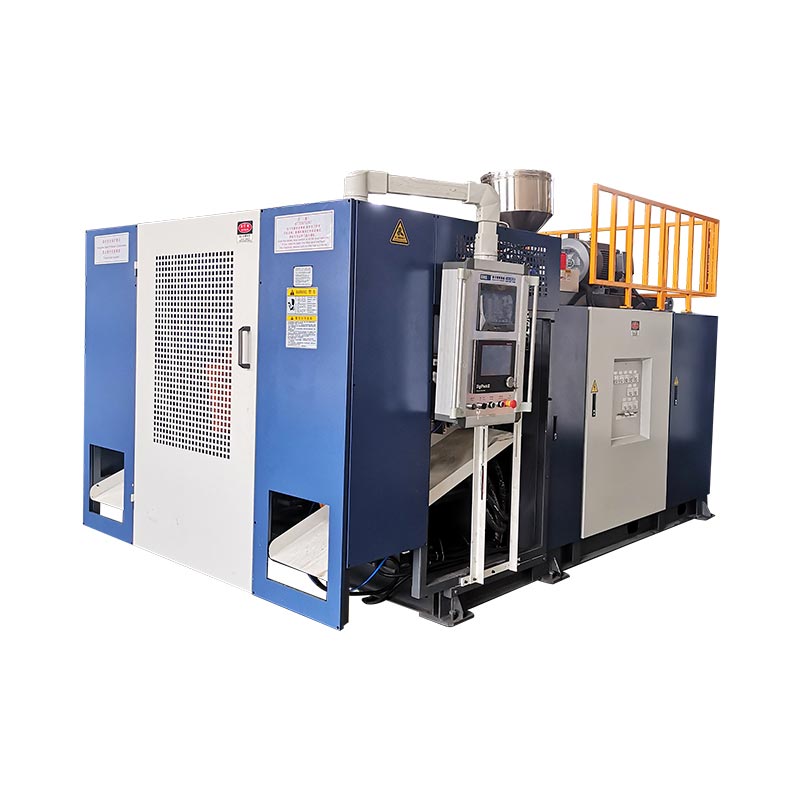

5l bitta stantsiya zarbasi

Model:KGB5L

Bizning yagona stansiyadagi doimiy ravishda zarba berishning moslashuvchanligi va samaradorligini his eting. 5lgacha konteynerlar uchun mo'ljallangan, bu 5L bitta stantsiya zarbasi mog'orini moslashtiriladigan konfiguratsiyalarni taklif qiladi, shu jumladan maxsus bo'shliqning zarbasini shakllantirish uchun ma'lum bir bo'sh joyni olish uchun.

Ovoz balandligi: 5lOg'irligi: 3.0t

So'rov yuborish

Mahsulot tavsifi Specification Application

Siz uchun ajratilgan 5L bitta stantsiyani o'zgartirish kerakmi yoki o'zgaruvchan bozor talablariga moslashish kerakmi yoki bu mashinaga tengsiz va samaradorlikni ta'minlaydi. Bugun biz bilan bog'laning raqobatbardosh narximizni o'rganish va ushbu mashinaning ishlab chiqarish qobiliyatingizni qanday ko'tarishi mumkinligini bilib oling.

Xususiyatlar va afzalliklar

● Turli xil stantsiya Transport Molde Mump mexanizmini o'zgartirish mexanizmi, aniq tamponli va samarali o'zgaruvchan harakatlarni amalga oshirish uchun aniq buferni kesish varaqasi bilan jihozlangan.
● O'ldirish boshi markazlashtirilgan oziqlantirish tizimi bilan ishlab chiqilgan, mahsulotning yaxshilangan sifatli moddiy tarqatishni optimallashtirish.
Advinur elektron boshqaruv tizimi Mitsubishi Plc tomonidan quvvatlanadi va mustaqil qo'llanma tugmalari bilan ta'minlanadi, operatorlarga operatorlarga tezkor va aniq tuzatishlar va qulaylik bilan tuzatishlar kiritishga imkon beradi.
● Mahsulotning maksimal hajmi 5lning sig'imi 2L dan 5l gacha bo'lgan idishlarning kam sonli ishlab chiqarish uchun eng yaxshi tanlov bo'ladi.
Mahsulot xususiyatlari nuqtai nazaridan, u bir nechta qavatli, ikki qavatli, uch qatlamli tuzilmalar, shuningdek, bozor talablarini qondirish uchun shaffof variantlarni taklif etadi.
● Gidrotexik tizimda differentsial dizaynni keltirib chiqaradi, yuqori samaradorlik va tezkor tezlikni keltirib chiqaradi, ishlab chiqarishning umumiy samaradorligini sezilarli darajada oshiradi.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
