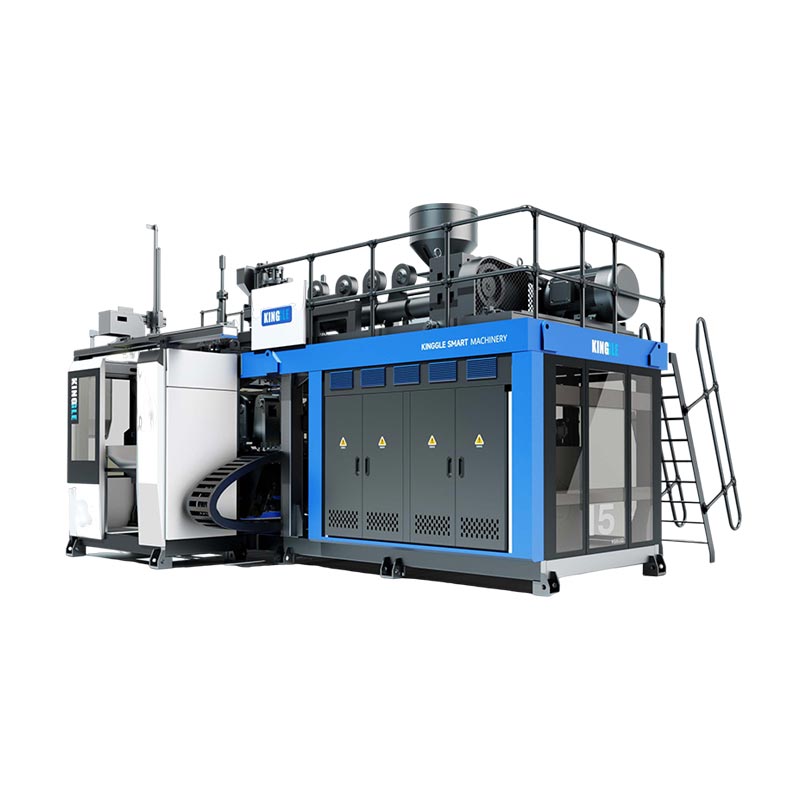

15L bitta stantsiya zarbasi

Model:KGB15L

Yuqori hajmli ishlab chiqarishga mo'ljallangan, bu bitta stantsiya doimiy ravishda pozitsiyasini 15l gacha bo'lgan idishlar ishlab chiqaradigan vositalar 15l gacha. Uning moslashuvchan dizay dizayni bitta va ko'p o'ladigan bosh konfiguratsiyalar orasidagi muammosiz almashtirishga imkon beradi, turli idishda turli xil o'lchamlarning maqbul samaradorligini ta'minlaydi. Siz bizning fabrikamizdan 15l bitta stantsiya zarbasini shakllantirish mashinasini sotib olishingiz mumkin.

Ovoz balandligi: 15LVazn: 7.5T

So'rov yuborish

Mahsulot tavsifi Specification Application

Shampun idishlaridan Jerrycana shisha idishga ulangan dastgohlar, 15l bitta stantsiya zarbasi mashinasi yuqori sifatli va izchil ishlashni ta'minlaydi. Ushbu kuchli va ko'p qirrali mashina bilan ishlab chiqarish qobiliyatingizni oshiring.

Xususiyatlar va afzalliklar

Mashinalar boshi 15L quvvatga ega, oqim jarayonida bir tekis devorning qalinligini aniq boshqaradigan, mahsulotning umumiy kuch va barqarorligini ta'minlaydi, mahsulotning umumiy kuch va barqarorligini ta'minlaydi.
Nazorat, bosim, vaqt va boshqalarga, masalan, harorat, bosim va boshqalarni aniq sozlash va turli xil parametrlarni aniq sozlash va eng intuitiv. Ishlab chiqaruvchilarning haqiqiy mehnat sharoitlariga muvofiq aniq kalibrlashni osongina amalga oshirishi mumkin, bu esa bozor bozorning turli ehtiyojlarini to'liq ko'rib chiqilishini ta'minlaydi. U bir qatlamli va ikki qavatli mahsulotlar bilan jihozlangan 15l konteyner ishlab chiqarishi mumkin, shuningdek, ma'lum bir tarmoqlar, oziq-ovqat va ichimliklar, kundalik tozalash, har kuni tozalash mahsulotlarining qadoqlash talablariga moslashishi mumkin.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
