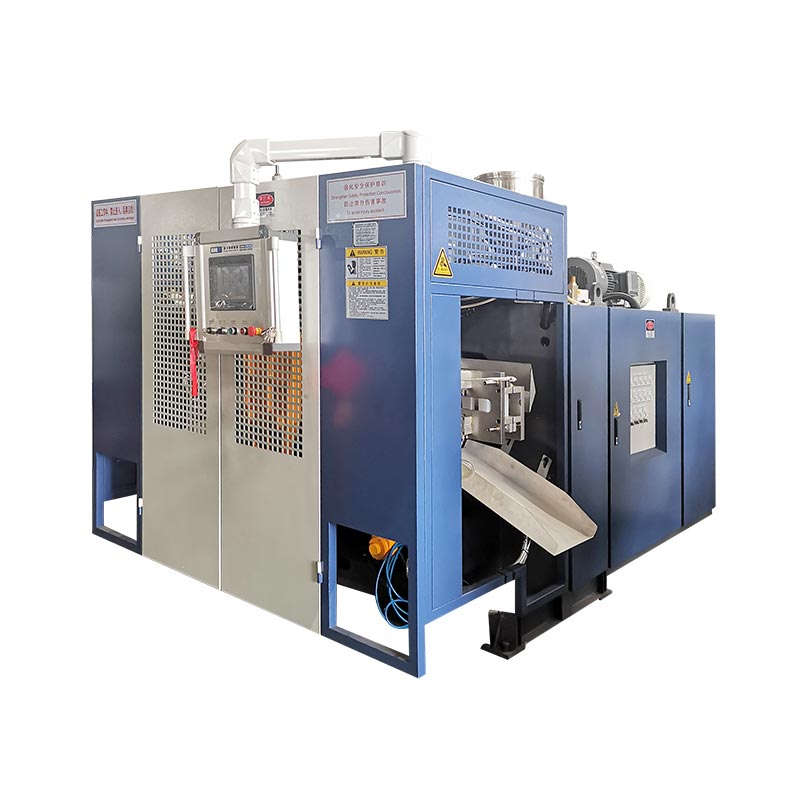

2L ikki qator stantsiya ekstüze zarbasini urish mashinasi

Model:KGB2D

Mahsulotingizni yuqori sifatli 2 ta stansiya ekzatsion puflash mashinasi bilan to'ldiring. Maksimal 2L konteynerlari uchun mo'ljallangan, bu ko'p qirrali tizim keng turdagi mahsulotlarni ishlab chiqarishga qaratilgan.

Ovoz balandligi: 2LOg'irligi: 4.5t

So'rov yuborish

Mahsulot tavsifi Specification Application

Turli xil dasturlarga mos keladigan kichik hajmdagi hajmga ega bo'lish uchun 2, 3 yoki 4 ta ko'p o'lchagichli bosh konfiguratsiyasiga o'ting. Shampun idishlaridan sutli shisha zarbalarini shakllantirish mashinasi uchun bu 2 ta stansiya ekstüzing zarbasi doimiy sifatli va alohida chiqishni etkazib beradi. Raqobatbardosh shisha idishni zarbasini shakllantirish mashinasini o'rganing va rentabellikning ko'payishi uchun potentsialni oching.

Xususiyatlar va afzalliklar

Ilg'or elektron boshqaruv tizimi Mitsubishi PLC boshqaruvi bilan jihozlangan, aniq belgilangan avtomatlashtirish jarayonlari va murakkab yo'riqnomalarni aniq bajarish qobiliyati bilan jihozlangan. Shu bilan birga, mustaqil qo'lda tugmachalarning o'ychan dizayni operatorlarni tezda boshlash va kutilmagan holatlar yoki ahamiyatsiz sozlash ehtiyojlarini yuzaga keltirish va insonparvarlikning samarali ishlashiga erishish uchun turli xil parametrlarni osonlikcha kalibratsiyalash.
Kirish va ko'p funktsiyali xususiyatlar kichik va o'rta o'lchamdagi 2 va pastda kichik hajmdagi ishlab chiqarishga qaratilgan. Optimallashtirilgan tana dizayni cheklangan joyda maksimal samaradorlikka erishadi, kichik maydonni egallaydi, joylashtirish oson va turli xil ishlab chiqarish seminarlarining sxeoplariga mos keladigan va mukammal moslashtiradi. Kichik ustaxona yoki keng miqyosli fabrika, uni osongina boshqarish va turli o'lchamdagi korxonalar uchun ideal ishlab chiqarish echimlarini ta'minlash mumkin.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM
