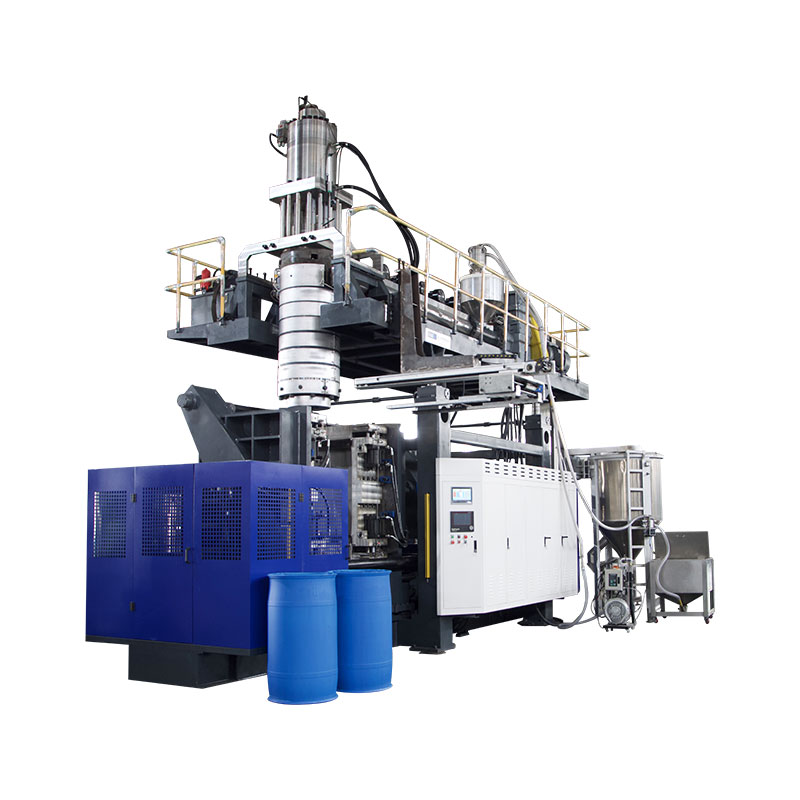

220 litr plastmassa baraban barabanli mog'orlash mashinasi

Model:KGB200L

KGB200L - bu aniq-muhandis 220 litrlik plastik baraban plastik baraban po'stlog'i ko'k kimyoviy barqa aplipt dasturlari uchun optimallashtirilgan. 200 litrli plastmassa barabanni buzadigan mashina ehtiyojlari, masalan, kimyoviy va sanoat barabanlari, bu yuqori kimyoviy qarshilik va tarkibiy yaxlitlikni ta'minlaydi. BMT sertifikatini olish uchun 3 metrlik tomchi testidan o'tishi mumkin.

Hajmi: 250LOg'irligi: 36T

So'rov yuborish

Mahsulot tavsifi Specification Application

Akkumulyator yuqori samarali ekstruder bo'linmasi bilan birlashtirilgan. Axborot natijalarini taqdim etadi. Ushbu 220 litr plastmassa plastmassa portlash mashinasi Moog 100 qalinligining kontrolyatorini, robot qo'lini va pastki pog'onalarini o'z ichiga oladi samaradorlikni oshirish tizimi. Ishlab chiqarilgan barabanlar qat'iy sifatni qondiradi standartlar, shu jumladan 3 metrlik tomchi sinovdan o'tish va BMTni olish Sertifikatlash.

Xususiyatlar va afzalliklar

Gorizontal bar markazini o'rab turgan in'ektsiya Saqlash tsilindrni saqlash
Optimallashtirilgan dizayn va aniq ishlab chiqarish orqali yuqori ishlab chiqarish quvvatiga erishish, soatiga18 dona ishlab chiqarishga qodir

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB200L
Specifications
1	Max container capacity	250L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M×6.5 M
4	Machine weight	36T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x1500 MM
3	Platen openingstroke	800 MM -1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM ×1700 MM
6	Mold thickness	810 MM - 950 MM
Power
1	Servooil pump motor power	37 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	110(132) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
