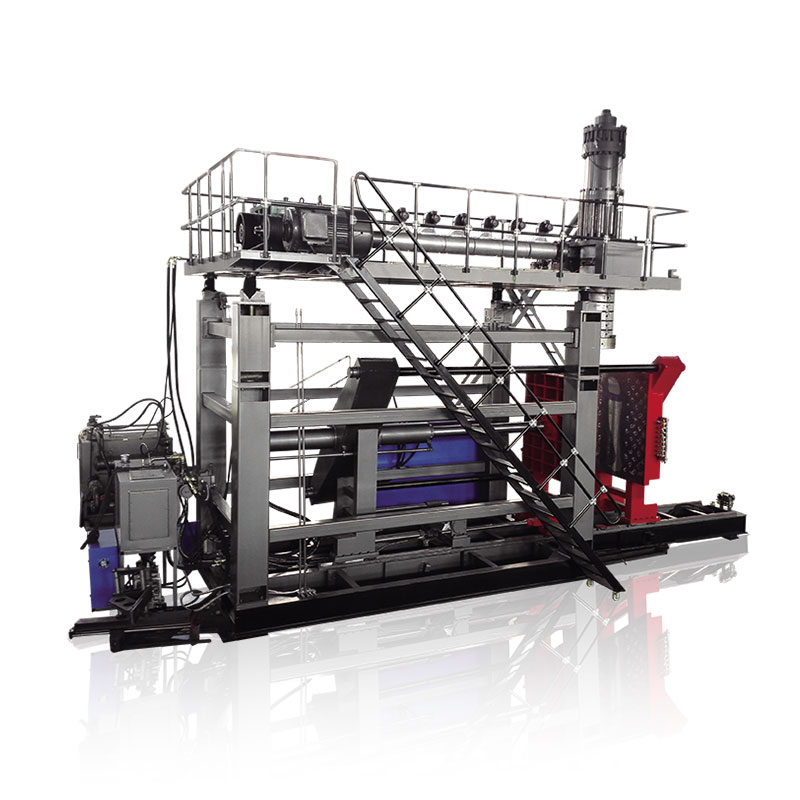

1000L IBC Suv tanklari mog'orlangan mashinani to'playdi

Model:KGB1000L- IBC

KGB1000L IBK suv tanklarining kuch va barqarorligini his eting, tebranish va joy almashish uchun 55 tonnadan oshib ketadigan 55 tonnadan yuqori bo'lgan. Diagonal dublionli shilliq novdalar va markaziy uch silindrsimon qisqichbaqasimonlar hatto mog'orni shakllantirish, ishlab chiqarish aniqligini oshirishni ham ta'minlaydi.

Ovoz balandligi: 1000LOg'irligi: 55t

So'rov yuborish

Mahsulot tavsifi Specification Application

Ushbu 1000L IBC Suv tanklari to'plangan shakllantirish mashinasi pasaygan xarajatlar va ko'p qavatli ishlab chiqarish tamoyillari va ko'p qavatli ishlab chiqarishning pasayishi va mahsulotning chidamliligini yaxshilash uchun ko'p qavatli ishlab chiqarishni o'z ichiga oladi. Katta quvvatli konteynerlar, shu jumladan suv idishining zarbasi zararli dastgohlarini ishlab chiqarish uchun ideal, bu mashina 1000lgacha, IBC barabanlari, katta o'lchamdagi avtomobil moyaklari va boshqa narsalar ishlab chiqarish uchun mos keladi. Bugun biz bilan bog'laning va raqobatbardosh suvni olib tashlash mashinasini o'rganing.

Xususiyatlar va afzalliklar

Umumiy uskunalar 55 tonnadan oshishi mumkin, tebranish va mashinani almashish va ishlab chiqarishning aniqligi va barqarorligini oshirishi mumkin.
● Diagonal doira lug'atlari va markaziy uch silindrli mog'orli mog'or egri, shablon yanada qattiqroq va osonlikcha deformatsiyalanmagan
● Ko'p qavatli ishlab chiqarish ishlab chiqarish xarajatlarini kamaytiradi va mahsulotning chidamliligini oshiradi
● Suv minoralar, saqlash idishlari, kimyoviy idishlar va boshqalar kabi yirik plastik mahsulotlar ishlab chiqarish uchun mos keladi.

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

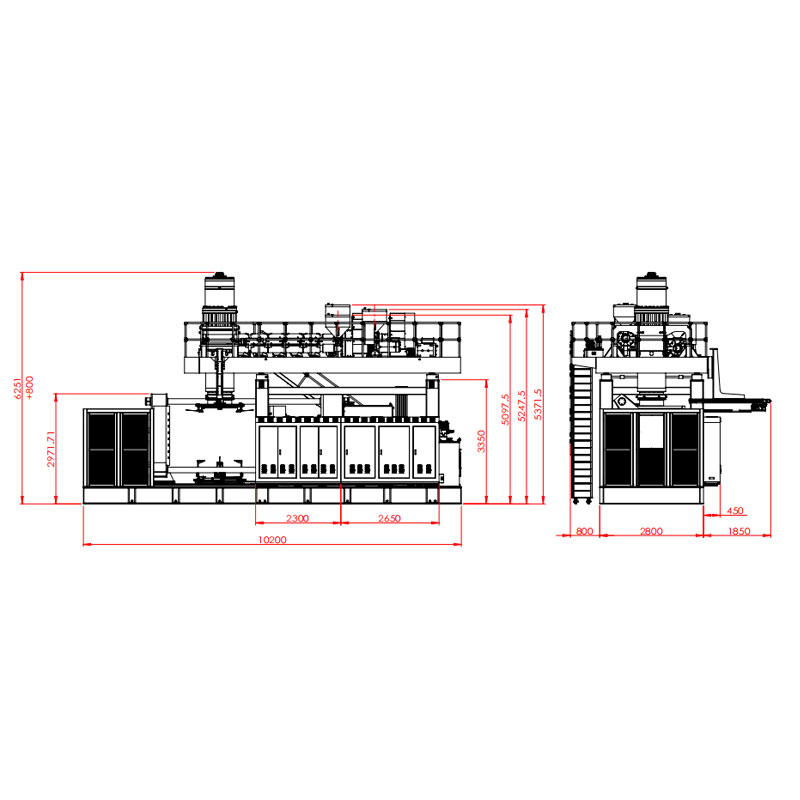

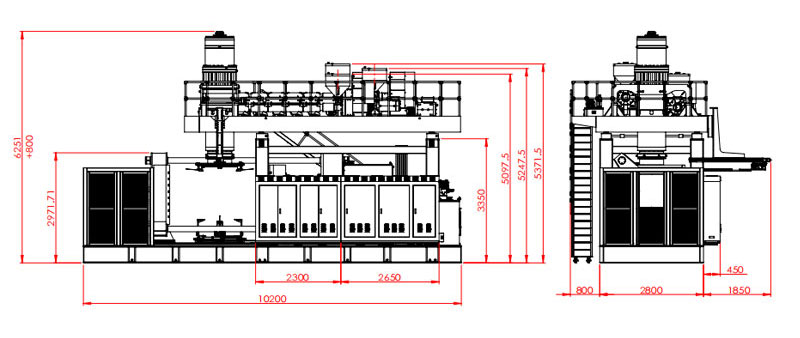

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
