ABS maxsus zarbasi

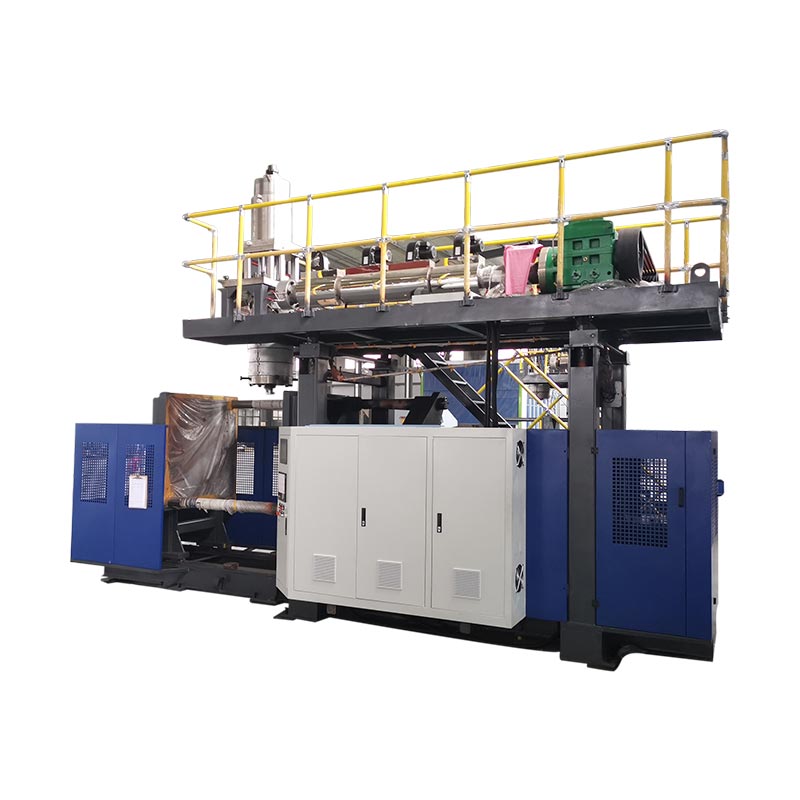

Model:KGB110A-ABS

Avtomobil qismlarini ishlab chiqarishni KGB110A-ABS-ga aylantiring, ABS maxsus zarbali mist-metrli zarbali mashinasi, avtoulov qismlari zarbasini buzadigan mashina dasturlari! ABS buzg'uni buzadigan mashinalarni buzadigan mashinalarni buzadigan mashinalar va boshqaruv panellari kabi urish uchun juda yaxshi, bu sizga avtomobil bozorini yuqori sifatli sifat bilan boshqarishga yordam beradi.

Ovoz balandligi: /Og'irligi: 25t

So'rov yuborish

Mahsulot tavsifi Specification Application

KGB110a-ABS - bu avtoulov qismlari uchun maxsus model zarbasi mashinasidir Ishlab chiqaruvchi. Yuqori bosimli ekstruziya va puflaganda mistikaning maxsus zarbasi mashinasi Jarayondan keyingi vaqtni saqlash uchun mukammal yuzani yarating. Va moslashtirilgan mashina Mashinalar investitsiya xarajatlarini tejash sohasi va sanoatning nozik mahsulotlariga mos keladi.

Xususiyatlar va afzalliklar

Texnologiya salohiyatiga chuqurlash, iqtisodiy samaradorlikni oshiradigan mijozlar uchun bitta qatlamli mahsulot echimlarini ta'minlashi mumkin; Shuningdek, ajoyib hunarmandchilik bilan ikki qavatli yoki ko'p qavatli kompozit tuzilmalarni qurishi mumkin
110a-abs puflash mashinasining ishonchli va ishonchli gidrotexnika tizimiga ega bo'lgan 50a-puflash vositasining asosiy operatsiyalari. Uzluksiz va barqaror elektr uzatishni ekstudchining siljishi, kuchli va samarali ishlashi, hatto uzoq muddatli va yuqori darajada ishlashni ta'minlaydi, hatto uzoq muddatli va yuqori darajada ishlashni ta'minlaydi, hatto uzoq muddatli va yuqori darajadagi ishlab chiqarishlar, hatto yuqori sifatli mahsulotlarni barqaror ravishda ishlab chiqarishi mumkin.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
